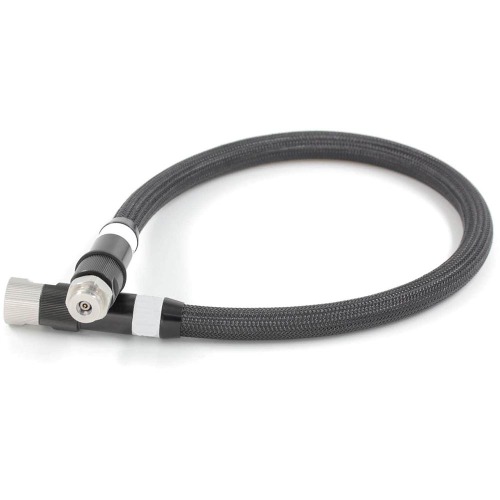

Raynool Low Loss, High Frequency Phase stable 40 GHz Cable Assenbly

Item No.: 00542
High Frequency, Phase stable cable assenbly
Description Review
Description









High Frequency, Phase Stable Cable Assembly



Raynool RNB Series cable use a low density PTFE dielectric offering excellent loss characteristics, outstanding phase stability.






Features



Low VSWR( 1.25 up to 40 GHz)
Excellent shielding effectiveness
High Frequency, Phase stablity





Specification


Connector Type

2.92 mm Male
2.92 mm Female

Cable Structure & Material

 Center Conductor Silver Plated Copper
Dielectric LD PTFE
Outer Conductor Silver Plated Copper Foil
Protect Layer PET
Outer Shield Silver Plated Copper
Jacket FEP

Impedance: 50 Ω
Frequency: 0 to 40 GHz, 0 to 50 GHz, 0 to 67 GHz



Click here to know more about the strcture of the cable.


Application

5G
Laboratory
Testing


Performance

Click here to know more about the testing of the RNB series.
