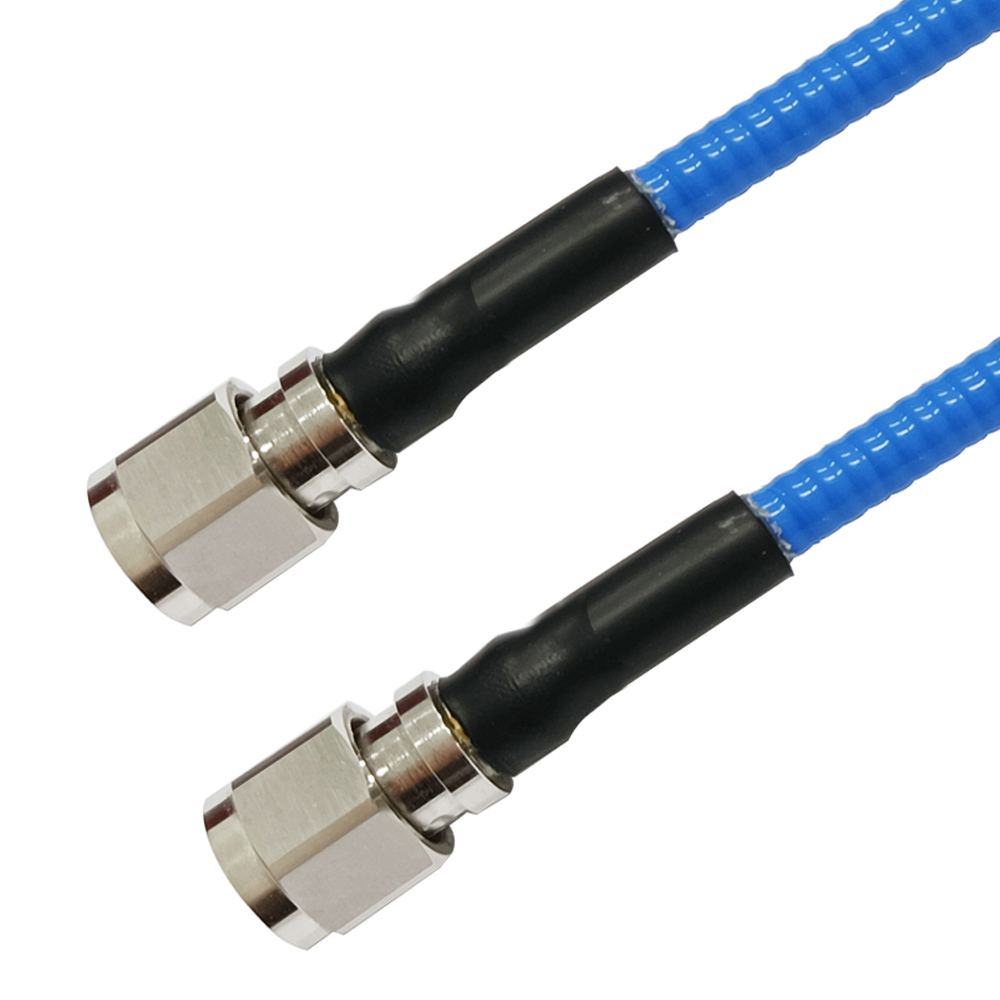

Low PIM Plenum Rated 2.2-5 Male to 2.2-5 Male SPP-250LLPL Cable Assembly

Description Review

Description

Low PIM Plenum Rated RF Cable Assembly

Raynool Manufacture varies Low PIM Plenum rated Cable Assembly with varies RF Connector interface SMA, QMA, RNX, 2.2/5, N, 4.3/10, 7/16 DIN, Male and Female, and Coaxial Cable RG402, TFT-402-LF, RG401, SPP-250-LLPL, length can be customized as per request. All Cable Assembly will be applied Static PIM and Dynamic PIM test, to ensure the quality. Test data can be labeled on cable.

10+

Years Experience

1 week

Fast Turnaround

<-161 dBc

PIM rated

100%

Inspection

Low PIM Plenum Rated 2.2-5 Male to 2.2-5 Male SPP-250LLPL Cable Assembly

Features

Low PIM, <-161 dBc@2*20W.
Low VSWR, <1.15@0-3 GHz, < 1.25 @ 3-6 GHz.
Excellent low loss characteristics.
Widest selection of lengths and connector styles.
100% tested ensuring the highest quality.

Specifications

Impedance:	50 Ω
Frequency:	DC - 6 GHz
PIM:	≤ 1.61 dBc @ 2*20W
VSWR:	≤ 1.15 @ 0-3 GHz ≤ 1.25 @ 3-6 GHz
Shielding Effetiveness:	≥ 90 dB

Low PIM RF Cable Assembly

Low PIM Soluton

PIM is a type of distortion/noise generated by two or more high power signals interacting with non-linear characteristics in the RF path. While PIM is an issue for almost every wireless system, it is more noticeable in cellular applications such as 5G because the frequency bands used are very close to each other. PIM can create interference that limits receive sensitivity, lowering the cellular system’s reliability, data rate, and capacity. Passive intermodulation issues can result in decreased system capacity and data rates and dropped calls.
