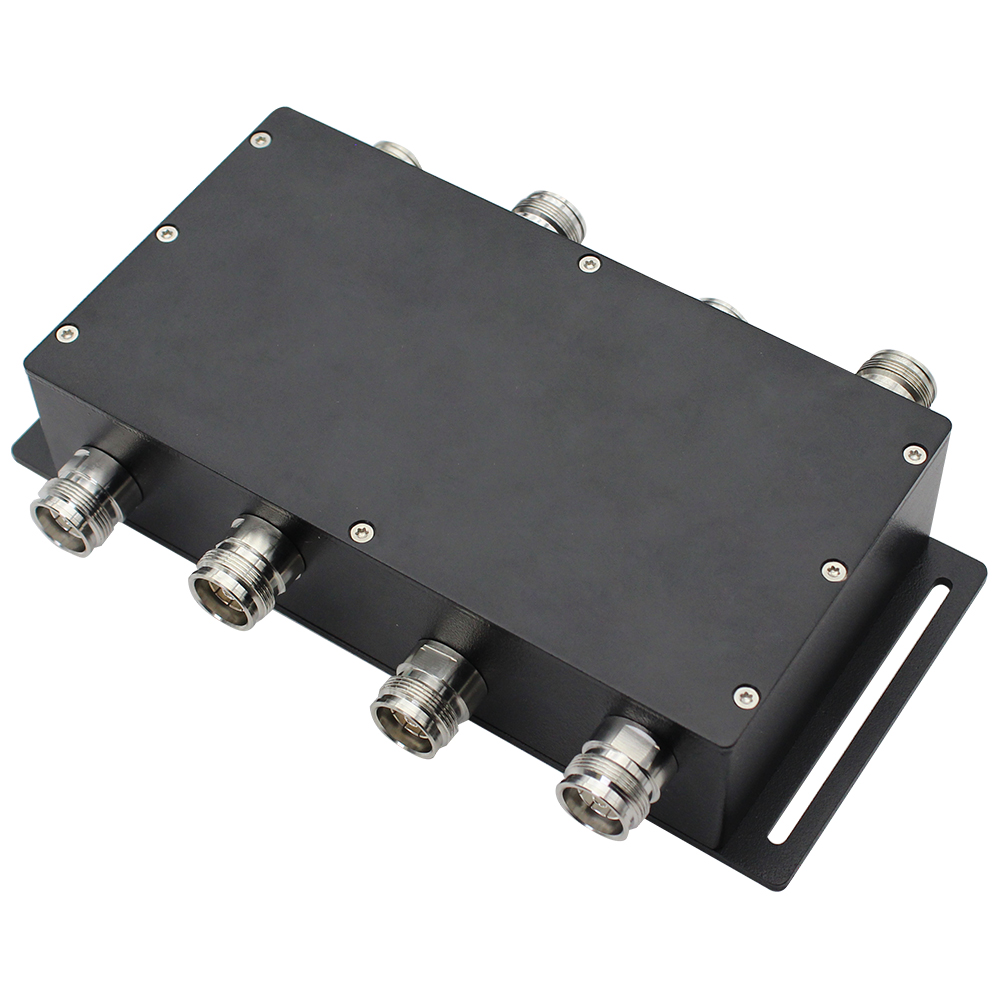

Low PIM 4 in 4 out Hybrid Combiner
Low PIM 4 in 4 out Hybrid Combiner Low PIM 4 in 4 out Hybrid Combiner Low PIM 4 in 4 out Hybrid Combiner
  • Low PIM 4 in 4 out Hybrid Combiner

Low PIM 4 in 4 out Hybrid Combiner

Item No.: 00614
Low PIM 4 in 4 out Hybrid Combiner, frequency 694 MHz to 4000 MHz, Low PIM - 160 dBc
Request Quote
Description Review
Description
Low PIM 4 in 4 out Hybrid Combiner
Frequency 694 - 4000 MHz
VSWR < 1.30
Low PIM <  -160 dBc
Input Power 200 W
Impedance 50 ohm
Insertion Loss 6.1 dB
Fluctuation ±1.0 dB
Isolation > 23 dB
Connector type N Female / 4.3-10 Female / DIN Female

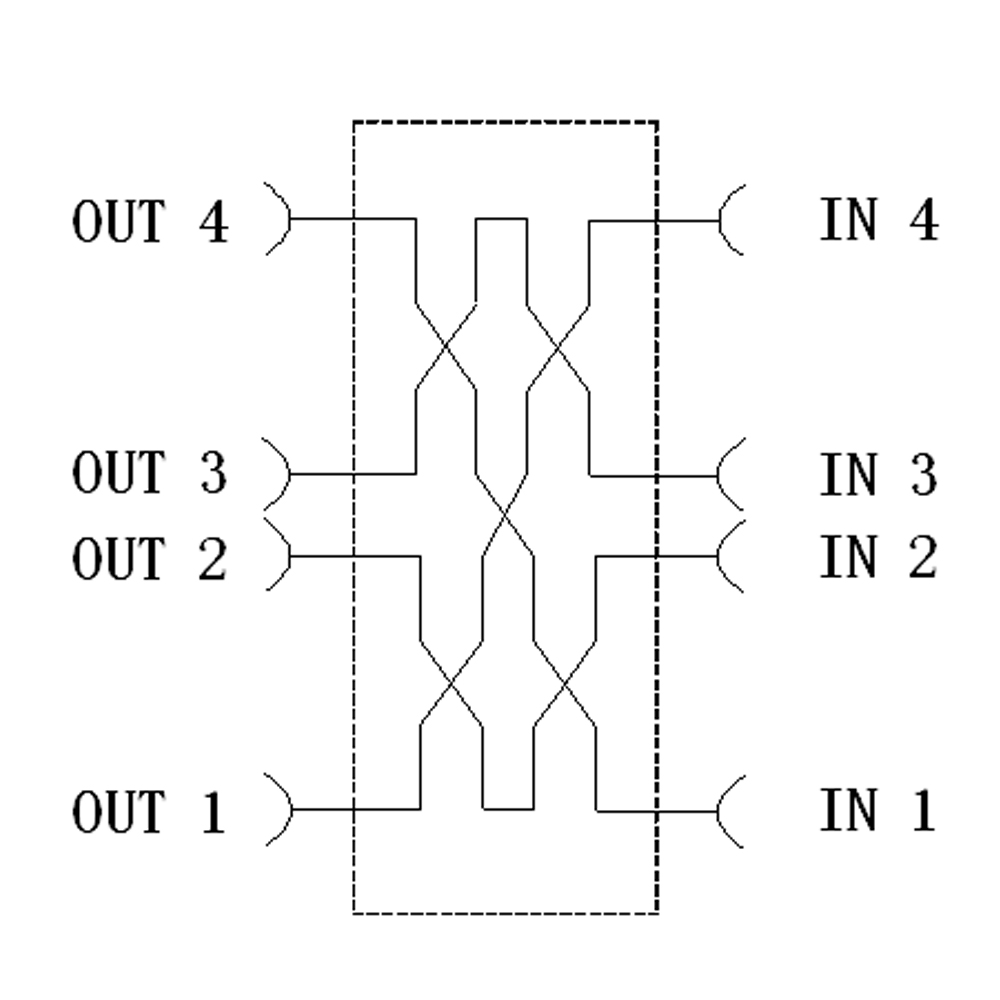

Schematic diagram:

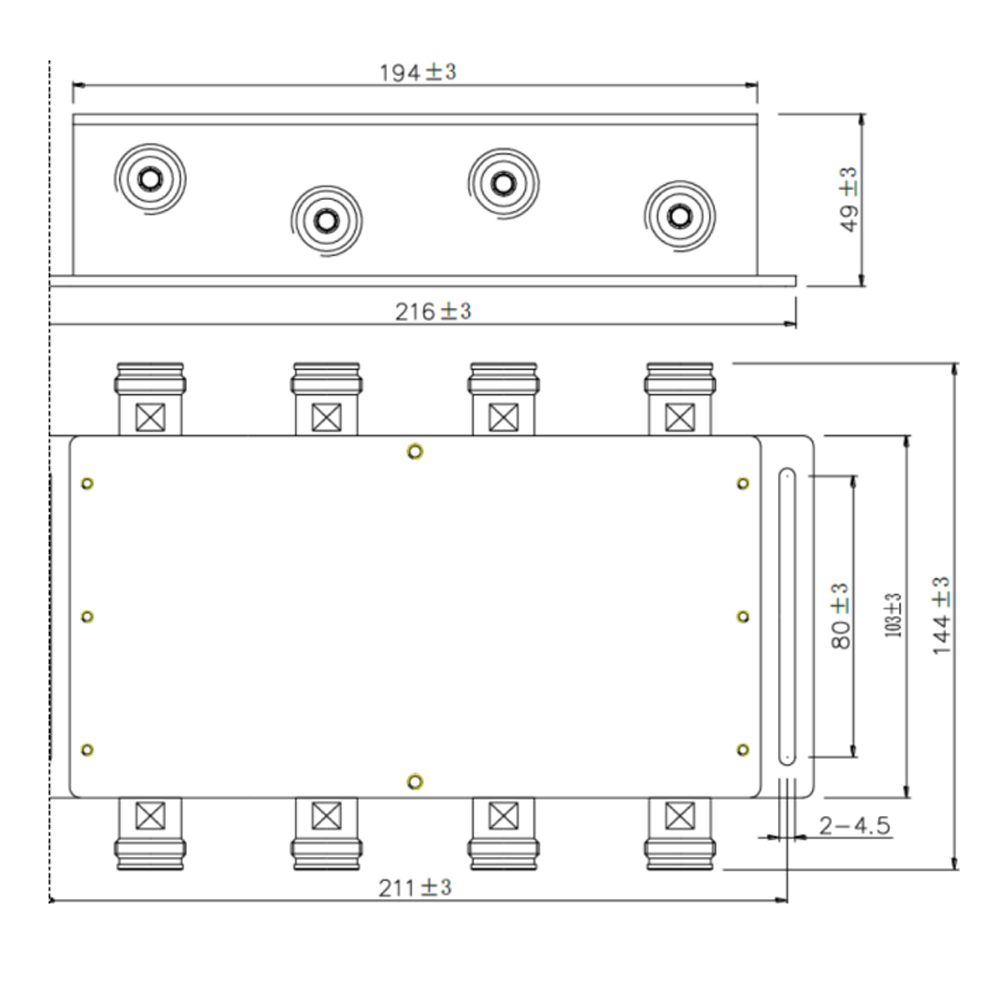

Dimension:
