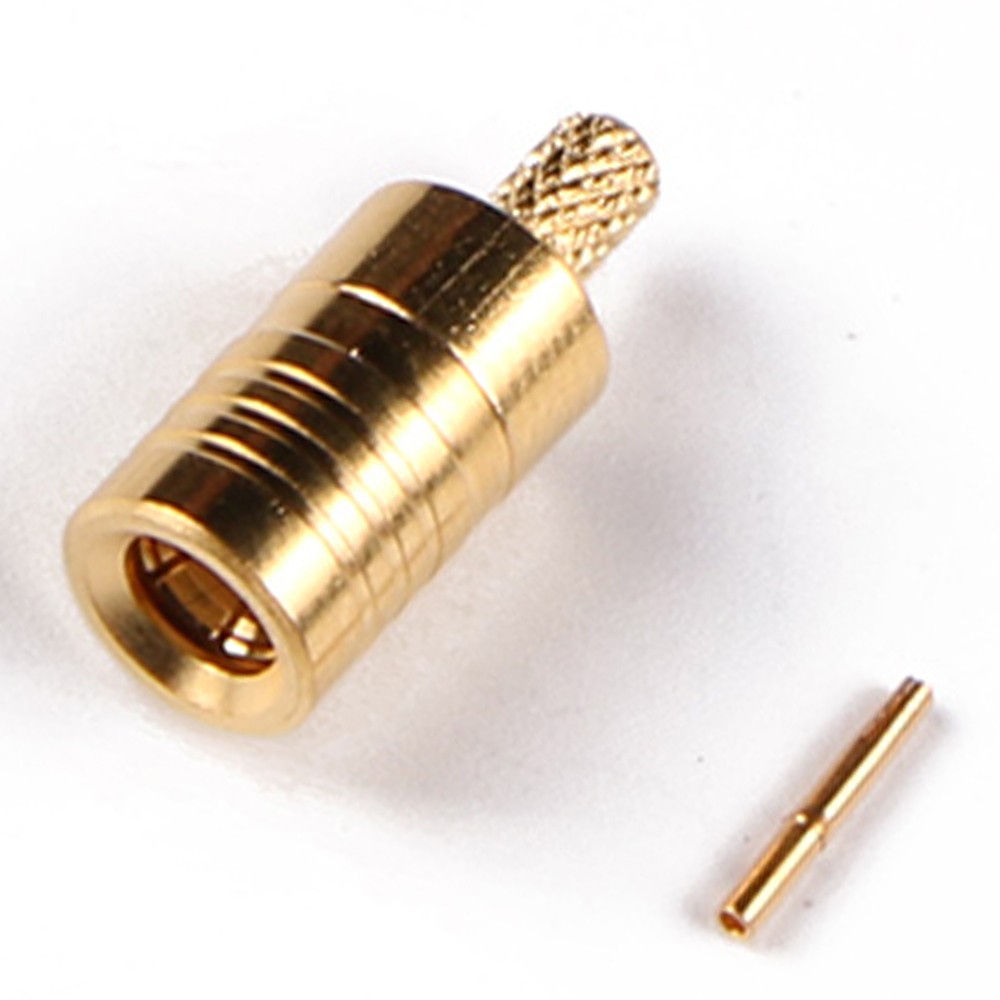

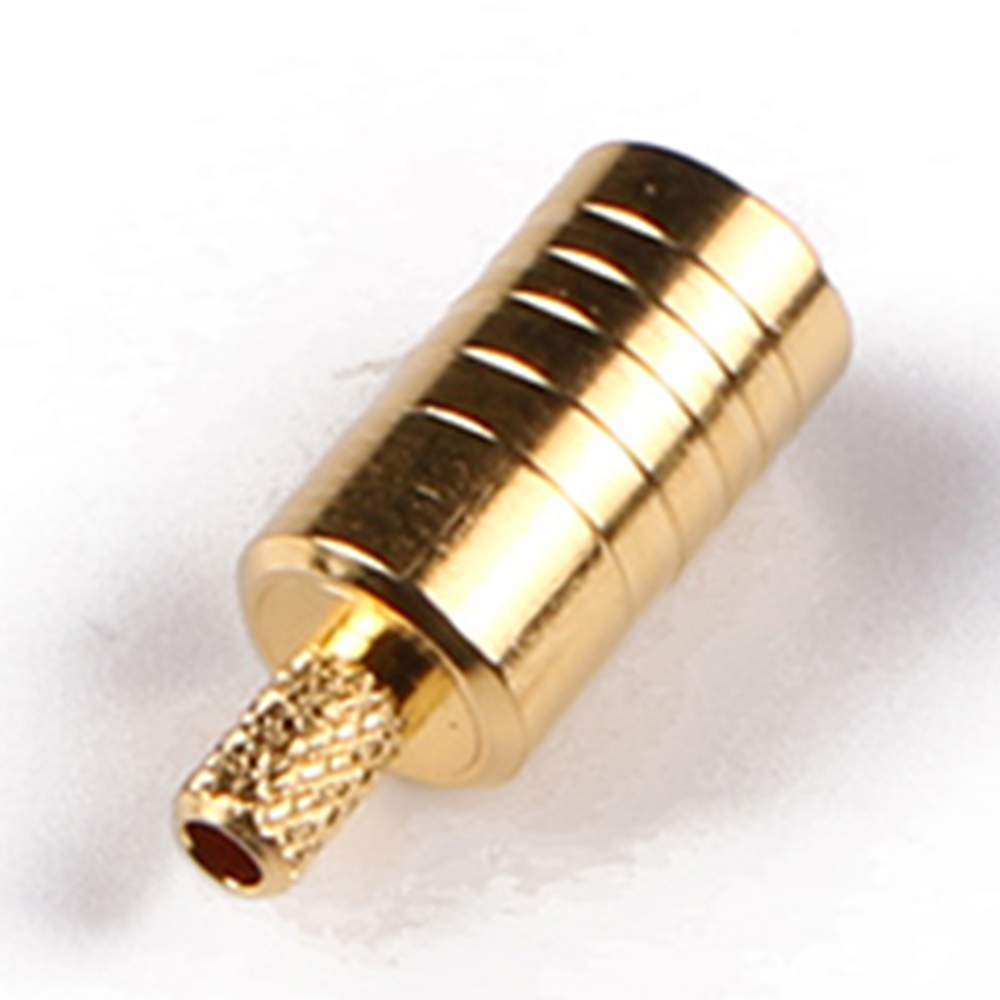

Name: Low Loss Coaxial RF Connector SMB Male for LMR200 RG58 Cable
Brand: raynool
SKU: 00711
Availability: InStock
Rating: 5 (1 reviews)

Home > Connector & Adapter > SMB

Low Loss Coaxial RF Connector SMB Male for LMR200 RG58 Cable

Description Review

Description

Low Loss Coaxial RF Connector

Raynool manufacture a full series of Low Loss RF Connector, with interface including 1.0/2.3, 1.6/5.6, UHF, BNC, TNC, SMP, RNX10, 2.2-5, SMA, QMA, Type N, 4.3-10, 7/16 DIN, and Low Loss Microwave RF Connector SMA, 3.5 mm, 2.92 mm, 2.4 mm, 1.85 mm. These connectors are available in Male and Female, straight and Right Angle versions and attached to varies Low PIM coaxial cable, offer dependable performace up to 65 GHz.

10+

Years Experience

1 week

Fast Turnaround

2000+

Connectors in stock

100%

Inspection

Low Loss Coaxial RF Connector SMB Male for LMR200 RG58 Cable

Feature & Benefits:
(1) Impedance: 50 ohm.
(2) VSWR: < 1.15 @ 6 GHz.
(3) Durable Mechanics rated for > 500 cycles mating.

Electrical Data:
Frequency Ranges:	0-6 GHz
Impedance:	50 ohm
VSWR:	<1.15
Material & Finished
Center Conductor:	Phosphor Bronze, Au plating
Dielectric:	PTFE
Body:	Brass, Au plating
To customized Coaxial RF Connector or for further information/Datasheet Contact: sales@raynool.com

Low Loss Coaxial RF Connector

Raynool manufacture a full series of Low Loss RF Connector, with varies interface including 1.0/2.3, 1.6/5.6, UHF, BNC, TNC, SMP, RNX10, 2.2-5, SMA, QMA, Type N, 4.3-10, 7/16 DIN, and Low Loss Microwave RF Connector SMA, 3.5 mm, 2.92 mm, 2.4 mm, 1.85 mm. These connectors are available in Male and Female, straight and Right Angle versions and attached to varies Low PIM coaxial cable, offer dependable performace up to 65 GHz.

Feature:
1. Low VSWR: Feature VSWR<1.30 and normally <1.15 within the frequency range.
2. Low Insertion Loss: Optimized structure to ensure minimal singal loss.
3. Dependable Performance: Robust design and Tri-metal plating to resist harsh outdoor environments(IP67 rated), 500 cycles mating.
4. Versatile Deployment: Ideal for varies application.

Attached to Varies Low Loss Cable

N Male and Female Low Loss RF Connector for:

LMR100, LMR195, LMR200, LMR300, LMR400, LMR600.

RG58, RG142, RG400, RG213, RG214, RG223

1. Straight & Right Angle
2. Flange Mount Bulkhead IP67 rated
Waterproof design available.
3. Times Microwave EZ type solderless design.
4. Crimp type & Clamp type

Low Loss Solution
Raynool features a full series of Low Loss RF products including varies Low Loss RF Connector, Low Loss RF Adapter, Low Loss Coaxial Bulk Cable and Custom Low Loss Cable Assembly, Passive Components including Termination Load, Tapper, Directional Coupler, Attenuator are available for varies application.
