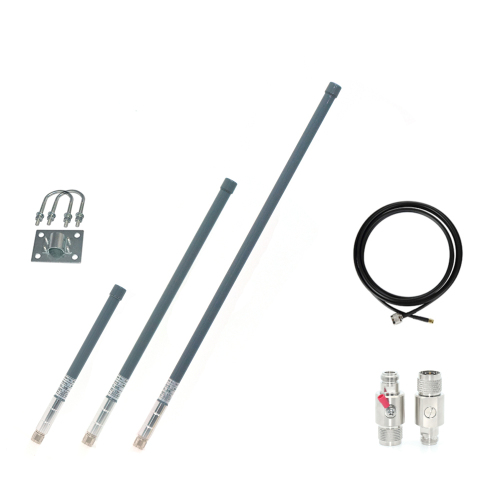

OEM RayNool 3 dbi to 12 dbi Helium Antenna Customized Logo Color

Item No.: 00551
Contact us if you need to place mass order!
  • Shipping cost included:
  • Color:
    White
    Grey
    Black
  • Antenna Gain:
    3 dBi
    5 dBi
    5.8 dBi
    6 dBi
    8 dBi
    10 dBi
    12 dBi
Description Test Report Accessories
Description
Compatible with all Helium hotspots and LoRa gateways: RAK miner, Nebra miner, SenseCap miner, BOBCAT miner, etc.
Contact RayNool sales for customized Antenna!
SPECIFICATION
Electrical Specification
  • Antenna Frequency: Working both at 868MHz(EU/UK),  915MHz(US)
  • Gain:  3, 5, 5.8, 6, 8 10 dBi
  • Impedance:  50 Ohm
  • VSWR:  < 2.0
  • Polarization:  Vertical
  • Lightning Protection: DC Ground
  • Efficiency: 60% to 70%
  • Connector: N type

Mechanical Specification
  • Radome Color:  Gray
  • Operating Temperature:  -40ºC to +60ºC
  • Length:  L900mm*OD20mm
FEATURES
  • Improves Signal Strength & Speed
  • High Gain, Low VSWR
  • Weather Resistant
  • Compact Size for Outdoor Applications
  • Requires A Direct Coaxial Wired Connection
Related Products
Fiberglass Antenna
3 dBi Helium Fiberglass Antenna 5.8dBi Helium Fiberglass Antenna dBi Helium Fiberglass Antenna
8 dBi Helium Fiberglass Antenna 10 dBi Helium Fiberglass Antenna 12 dBi Helium Fiberglass Antenna

Outdoor enclosure kit

Lightning Arrester

Extension Cable
23 cm Flat Cable RP SMA Male to RP SMA Female 46 cm Flat Cable RP SMA Male to RP SMA Female
1 m N Male to RP SMA Male LMR195 Cable 2 m N Male to RP SMA Male LMR195 Cable
1 m N Male to RP SMA Male RG316 Cable
 m N Male to RP SMA Male RG316 Cable
3 m N Male to RP SMA Male LMR400 Cable 5 m N Male to RP SMA Male LMR400 Cable
7 m N Male to RP SMA Male LMR400 Cable
10 m N Male to RP SMA Male LMR400 Cable 15 m N Male to RP SMA Male LMR400 Cable

Weatherproofing
Weatherproofing kit Weatherproofing tape


RF Connector & Crimp tool
N Male Connector N Female Connector RP SMA Male Connector
Click wrench tool LMR400 Cable Crimp tool LMR195 Cable Crimp tool
Test Report

5.8 dBi Test Report

VSWR

3D Pattern

Accessories

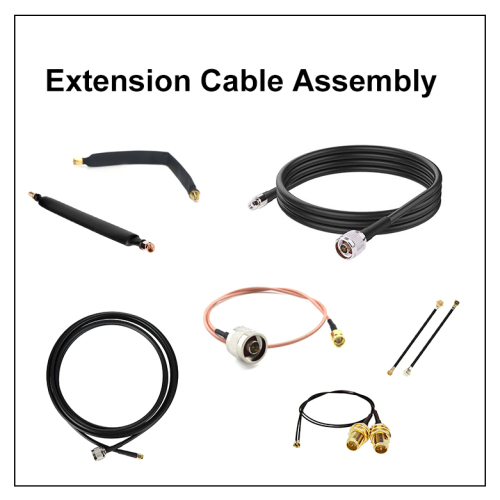

Extension Cable Assembly

  • Flat Cable
  • Low Loss 200/240/400 Cable
  • RG316 Cable

Lightning Surge Protection

  • Lightning Arrester
  • Grounding kit
