Edge AI Devices Antenna, Ultra Mini 2.4GHz WiFi Antenna External Antenna with Micro Coax Cable for IoT Devices

Item No.: 00824
The antenna features ultra low profile, ideal for IoT products requiring an ultra-compact, aesthetically pleasing antenna in a straight whip form factor. This antenna is perfect for AI edge devices, smart home gateways, industrial routers.
Description Review
Description
Edge AI Devices Antenna, Ultra Mini 2.4GHz WiFi Antenna External Antenna with Micro Coax Cable for IoT Devices
This antenna is a whip-style, panel-mount, monopole antenna designed for use in 2.4 GHz band supporting BLE, ZigBee, Wi-Fi IEEE 802.15.4, IEEE 802.11b/g and other unlicensed ISM application in the 2.4 GHz frequency range

The antenna features ultra low profile, ideal for IoT products requiring an ultra-compact, aesthetically pleasing antenna in a straight whip form factor. This antenna is perfect for AI edge devices, smart home gateways, industrial routers.


Ideal for Small Robot, Edge AI devices!

Performance Value
Frequency Range 2.4 GHz to 2.5 GHz
VSWR <1.30
Peak Gain 2.7 dBi
Average Gain 2 dBi
Efficiency 63%
Polarization Linear
Radiation Omni-directional
Max Power 1 W
Wathlength 1/4
Electrical Type Monopole
Impedance 50 ohm
Dimension Diameter 9 mm * 14 mm Radome
Antenna Color Wight(Black)
Coaxial Cable 1.13 mm Cable
Cable Length 100 mm / 150 mm / Custom Length
Connector U.FL / MHF1 / MHF4

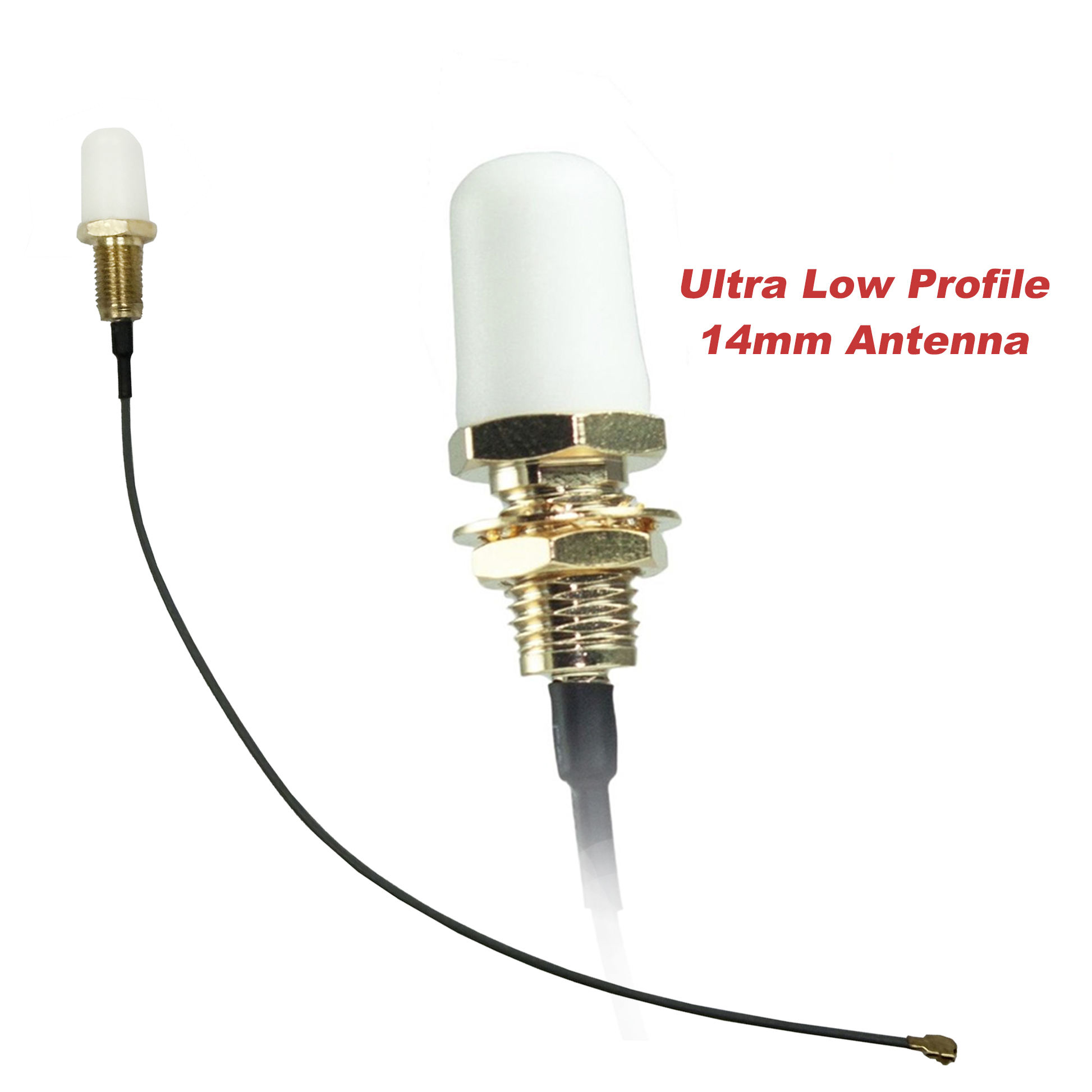

Ultra Low Profile, Ultra Compact Custom cable length / Connector


Antenna Test Data
