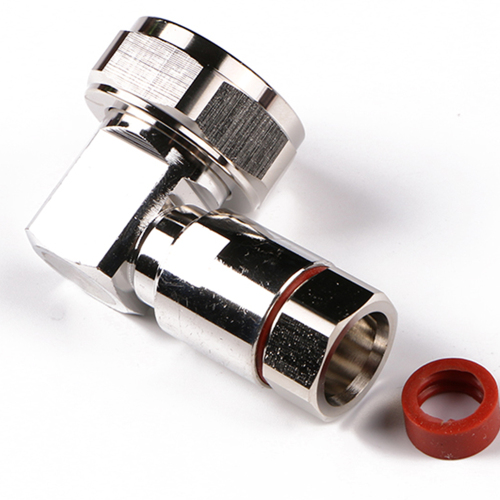

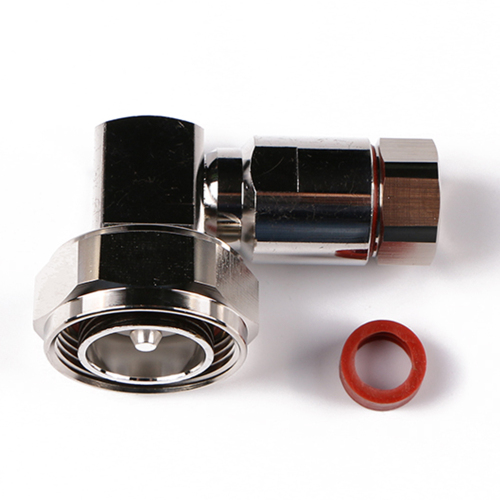

Low PIM Connector 7-16 DIN Male RA for 1/2 Cable

Low PIM Connector 7-16 DIN Male RA for 1/2 Cable

Name: Low PIM Connector 7-16 DIN Male RA for 1/2 Cable
Brand: raynool
Availability: InStock
Rating: 5 (1 reviews)

Low PIM Connector 7-16 DIN,with Impedance 50 Ohm,frequency range from DC to 6 GHz.

INQUIRY

Description

DIN Connector

Raynool DIN Connector are available in Male and Female version with 50 Ohm, 7-16 DIN connectors are available in straight or right angle versions, as well as, 4 hole flange, bulkhead version, contact our sales at sales@raynool.com if the below connectors are not what you exactly need.

Features

Low PIM.
Robust design for outdoor use

Specification

Material & Plating

Components	Material	Plating
Center conductor	Brass	Ag
Body	Brass	CuZnSn
Insulator	PTFE	/
Other parts	Brass	CuZnSn

Impedance: 50 Ω
Frequency: DC - 6 GHz
VSWR: ≤ 1.15
PIM: ≤ -160 dBc (2*43 dBm)

DIN Male Clamp for 1/2'' corrugated cable(Dowload Datasheet)
DIN Male Right Angle Clamp for 1/2'' corrugated cable(Dowload Datasheet)
DIN Male Clamp for 7/8'' corrugated cable(Dowload Datasheet)
DIN Female 4 Hole Flange Mount(Dowload Datasheet)
DIN Male Clamp for 1/4'' corrugated cable(Dowload Datasheet)

Application

Small Cell Applications
Low-power base stations
In multi-operator/multiband DAS
Blind mate for panel as well as test & measurement

Connectors in Comparison

Click here to know more about the Low PIM Connector.
