2 Way UWB Diplexer DPLX-UWB-2
2 Way UWB Diplexer DPLX-UWB-2 2 Way UWB Diplexer DPLX-UWB-2 2 Way UWB Diplexer DPLX-UWB-2
  • 2 Way UWB Diplexer DPLX-UWB-2

2 Way UWB Diplexer DPLX-UWB-2

Item No.: 00770

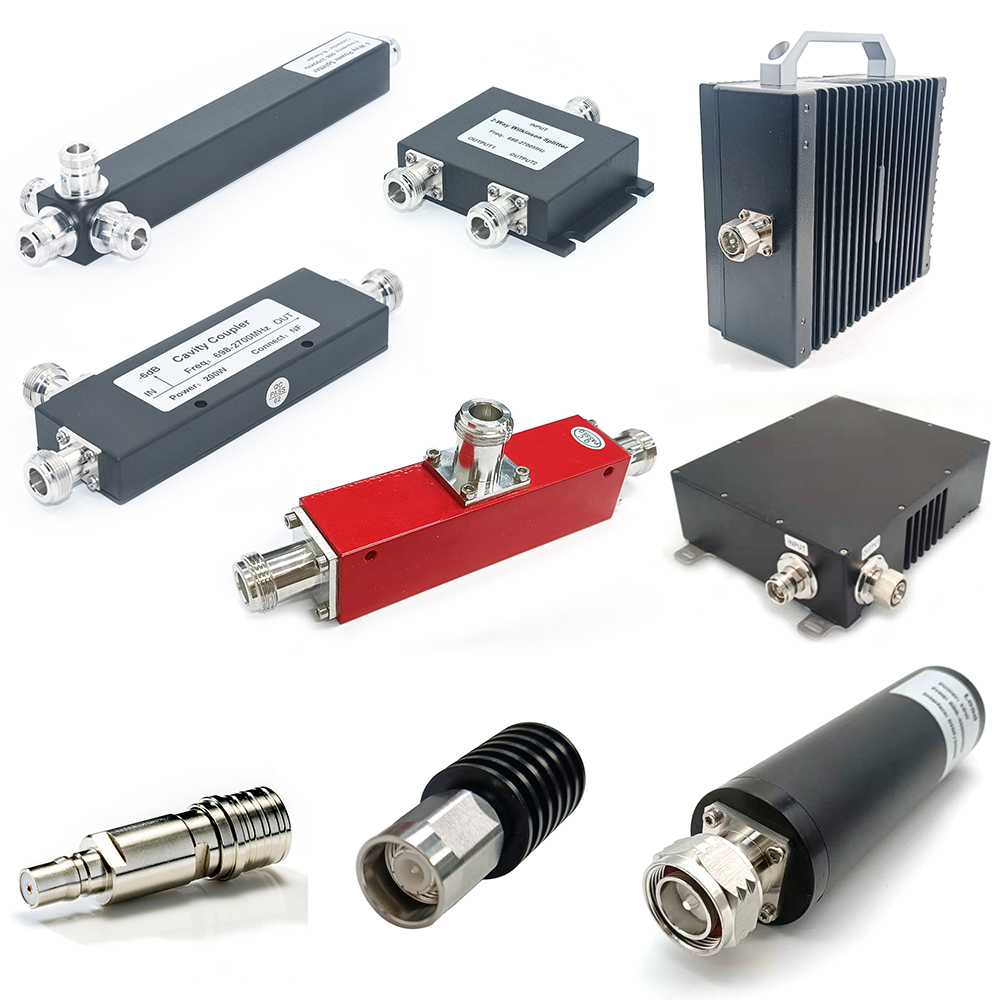

Raynool feature a full series of Passive Components including termination load, power splitter, directional coupler, tapper, diplexer, attenuator, hybrid combiner, lighting arrester, for Public Safety DAS, BDA, In-building DAS.
Request Quote
Description Review
Description
Passive Components
Raynool feature a full series of Passive Components including termination load, power splitter, directional coupler, tapper, diplexer, attenuator, hybrid combiner, lighting arrester, for Public Safety DAS, BDA, In-building DAS.
10+
Years Experience
1 weeks
Fast Turnaround
200+
Products in stock
100%
Test

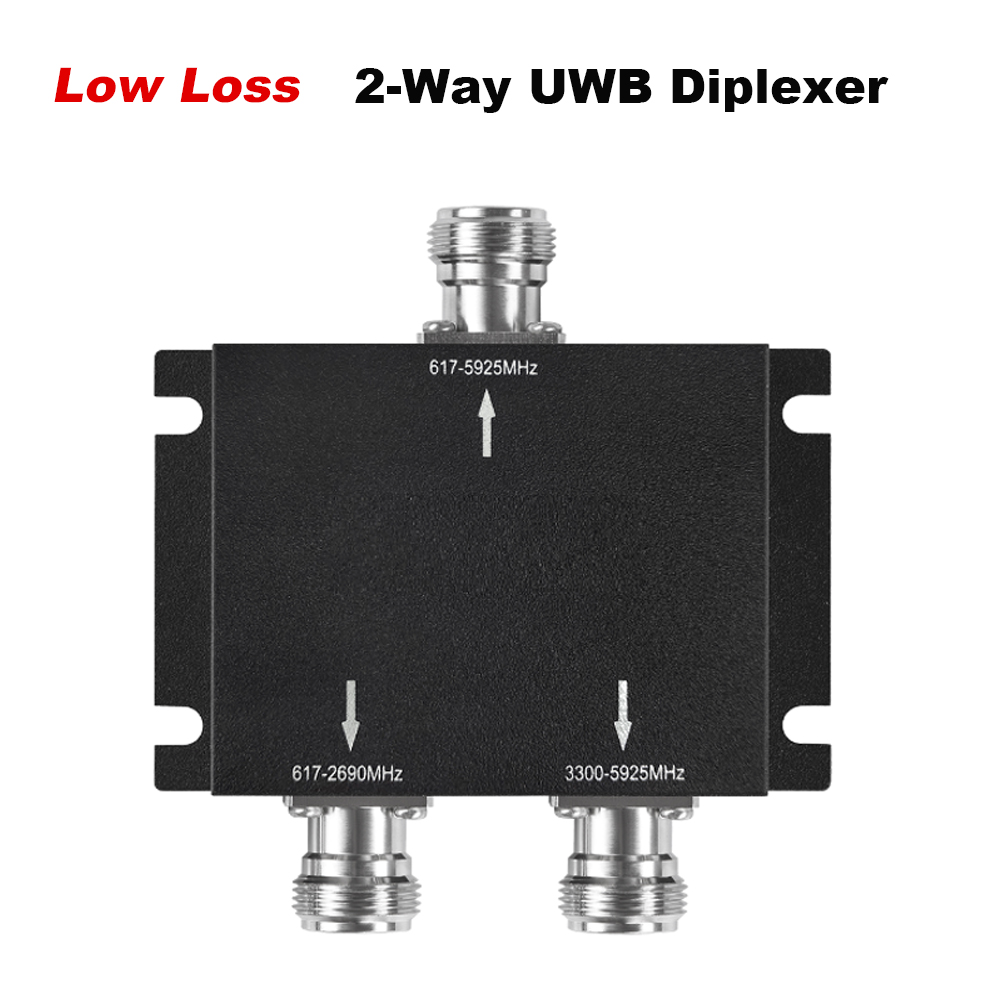

2 Way UWB Diplexer DPLX-UWB-2

Diplexer for traditional cellular spectrum is a frequency-selective distribution device that splits high and low frequencies through different channels back into one common port. The diplexer features N-Female connectors for 617-894 MHz and 1710-3900 MHz frequency domain multiplexing.

Product Specification
2 Way Diplexer DPLX-UWB-2
Connector N Female(Waterproof)
Frequency 617 - 2690 MHz 3300 - 5925 MHz
Insertion Loss ≤ 2.0 dB ≤ 3.0 dB
Isolation ≥ 23 dB
Impedance 50 ohm
Operating Temperature -31 ℉ to +149  ℉

Features:
1. 5G Ultra Wideband Coverage:
Covers 617-2690 MHz and 3300-5925 MHz, spanning 5G NR FR1 (Sub-6GHz) bands including n77/n78/n79 in one common port.
2. DC Bypass Design:
DC pass-through capability while keeping RF paths isolated, simplifying integration for remotely powered active systems.
3. Low Insertion Loss:
Preserves signal integrity across the wide 5G operating range for high-throughput NR links.
4. 2-3W Power Handling:
Dependable power handling suited to small cell, DAS and 5G base station front-end deployments.
5. N-Female Connectors:
Industry-standard N-Female interfaces for rugged, field-proven installations.
Low PIM, Low Loss
Termination Load: Low PIM and Non Low PIM rated, Power rating from 1 W to 200 W
Directional Coupler: Low PIM, 300 W, varies Frequency Range
Tapper: Low PIM, 300 W, varies Frequency Range
Wilkinson Splitter: Low PIM, 50 W
Diplexer: Low Loss, 2 typesFrequency ranges available
Attenuator: Low PIM and Non Low PIM, Power rating from 1 W to 100 W
