Passive Components
Raynool feature a full series of Passive Components including termination load, power splitter, directional coupler, tapper, diplexer, attenuator, hybrid combiner, lighting arrester, for Public Safety DAS, BDA, In-building DAS.

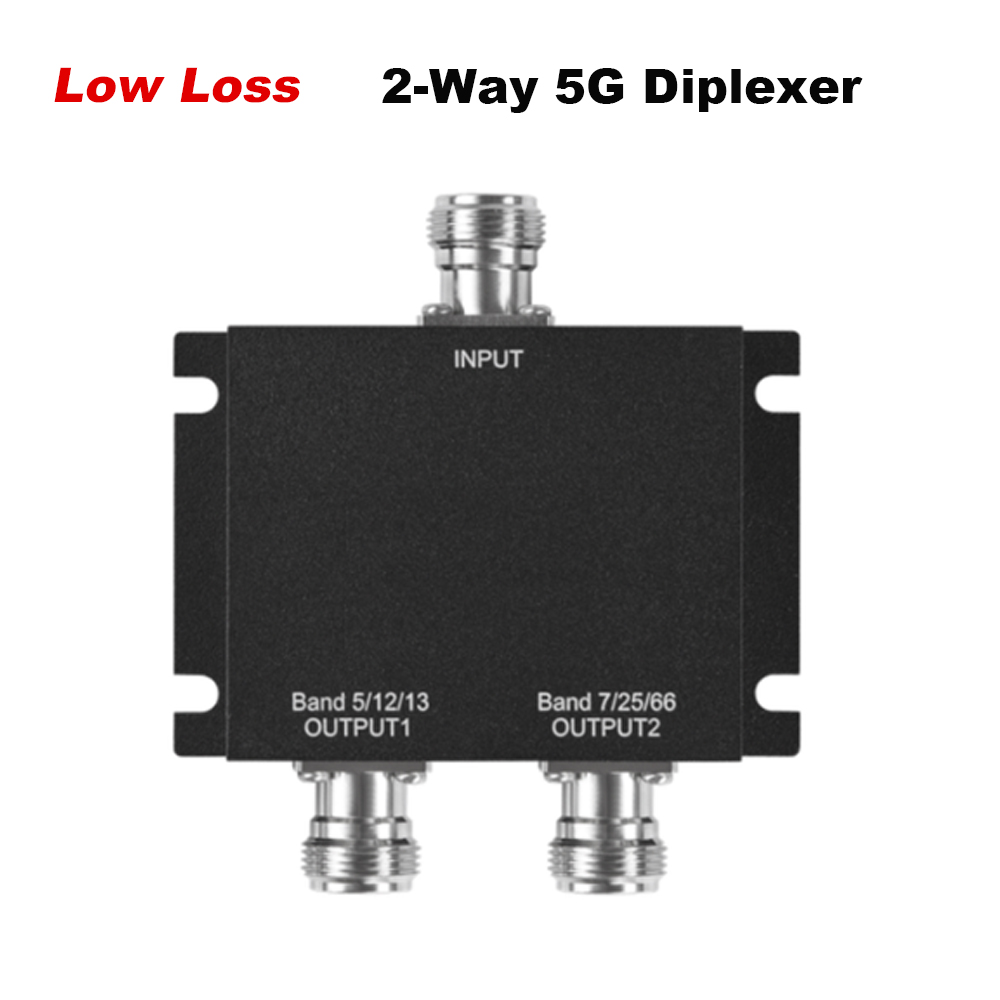

2 Way Diplexer DPLX-02-5G
Diplexer for traditional cellular spectrum is a frequency-selective distribution device that splits high and low frequencies through different channels back into one common port. The diplexer features N-Female connectors for 617-894 MHz and 1710-3900 MHz frequency domain multiplexing.
Product Specification
|
2 Way Diplexer DPLX-02-5G |
| Connector |
N Female(Waterproof) |
| Frequency |
617 - 894 MHz |
1710 - 3900 MHz |
| Insertion Loss |
≤ 0.5 dB |
≤ 1.1 dB |
| Isolation |
≥ 13 dB |
≥ 19 dB |
| Impedance |
50 ohm |
| Operating Temperature |
-31 ℉ to +149 ℉ |
Features:
1. Wide Dual-Band Coverage:
Covers 617-894 MHz and 1710-3900 MHz through one common port, consolidating multiple cellular bands in a single low-loss device.
2. Low Insertion Loss:
Minimal signal attenuation keeps system performance high across the full operating band for 4G LTE and 5G links.
3. Power Handling 2-3W:
Reliable continuous power capability for low to medium power base station, DAS and small cell applications.
4. N-Female Connectors:
Robust N-Female RF interfaces ensure stable, repeatable connections in field and rack-mount deployments.
5. Built for Cellular Networks:
Designed for traditional cellular spectrum, compatible with 2G/3G/4G LTE and 5G base station and in-building coverage systems.
Low PIM, Low Loss
Termination Load: Low PIM and Non Low PIM rated, Power rating from 1 W to 200 W
Directional Coupler: Low PIM, 300 W, varies Frequency Range
Tapper: Low PIM, 300 W, varies Frequency Range
Wilkinson Splitter: Low PIM, 50 W
Diplexer: Low Loss, 2 typesFrequency ranges available
Attenuator: Low PIM and Non Low PIM, Power rating from 1 W to 100 W
